S77減速機重量：S77減速機重量50公斤，S77減速機配電機重量分別如下

S77減速機配0.55KW電機重量65公斤，S77減速機配0.75KW電機重量66公斤，S77減速機配1.1KW電機重量70公斤，S77減速機配1.5KW電機重量73公斤，S77減速機配2.2KW電機重量82公斤，S77減速機配3KW電機重量85公斤，S77減速機配4KW電機重量96公斤，S77減速機配5.5KW電機重量110公斤，S77減速機配7.5KW電機重量123公斤。

S77減速機加油量：可加礦物油

S77減速機M1安裝加1.9升，S77減速機M2安裝加4.2升，S77減速機M3安裝加3.7/5.4升，S77減速機M4安裝加5.9升，S77減速機M5安裝加4.4升，S77減速機M6安裝加4.4升。規定的加注量為參老值。精確值的變化與級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝方式時，您必須根據改變后的安裝方式相應調整加注潤滑劑。上述中列出了安裝方式M1-M6的減速機相應的標準參考潤滑油注入量值。

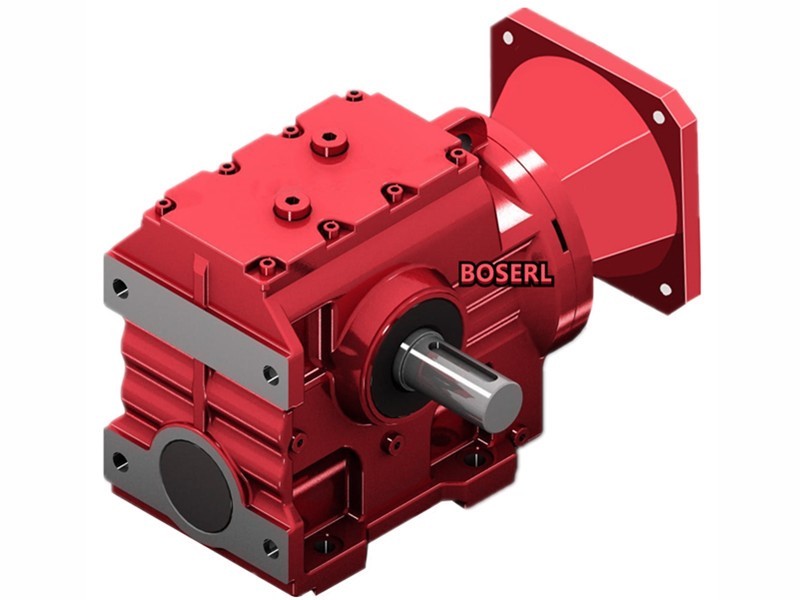

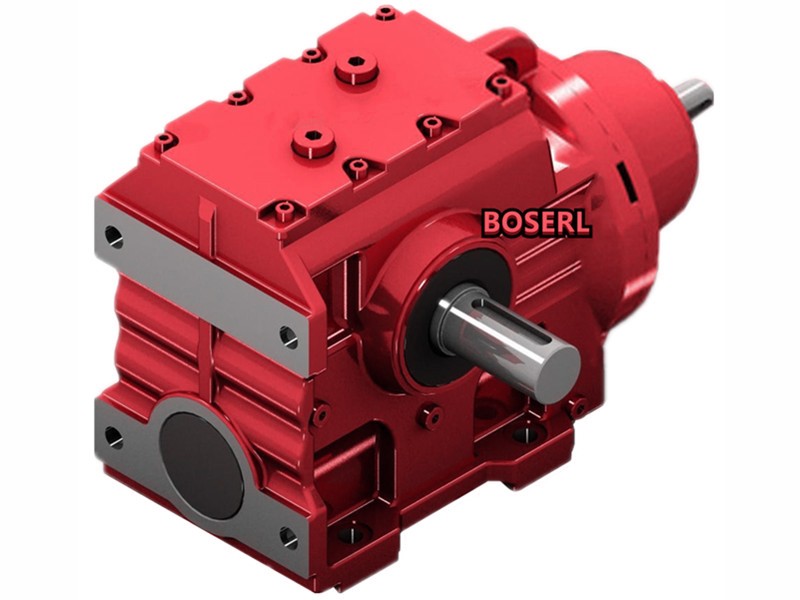

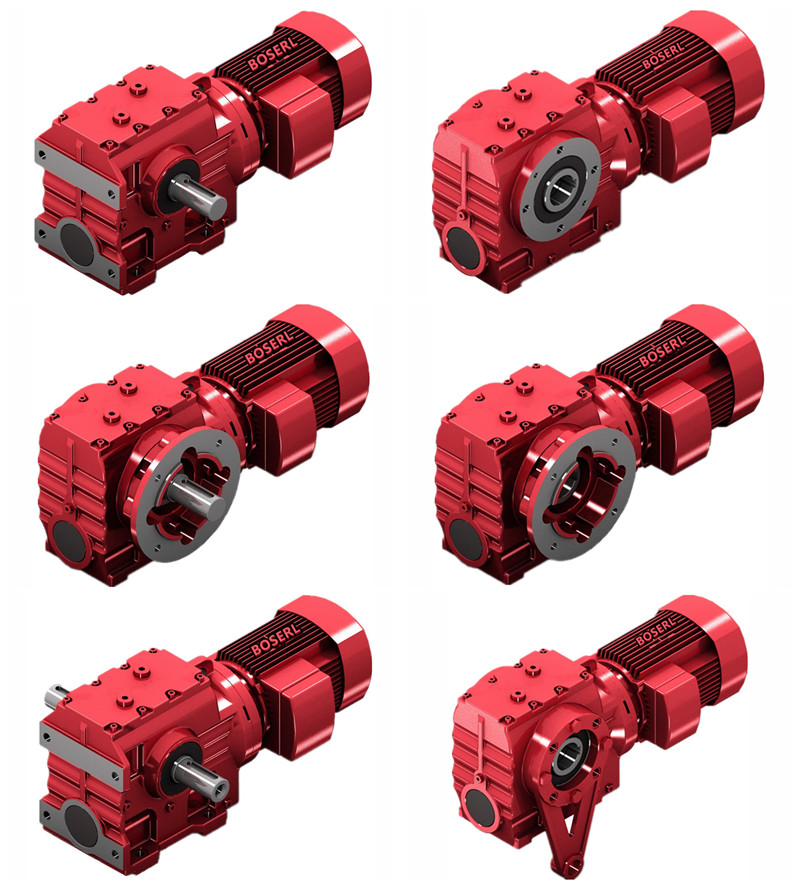

S77減速機實物圖：圖一為S77帶自鎖功能底腳斜齒輪蝸輪蝸桿減速電機，圖二SF77具有自鎖功能立式斜齒輪蝸輪蝸桿減速電機，圖三為SA77臥式中孔軸斜齒輪蝸輪蝸桿減速電機，圖四為SAF77立式通孔斜齒輪減速機。

S77減速機型號表示方法：

S77減速機型號結構S77-B7.5KW-4P-減速比-安裝方式-接線盒位置。

S77減速機性能參數表結構說明：E編碼器，T扭力臂，K代表服務系數，Frame size代表基座規格，HF手動釋放裝置帶自鎖功能，TF電機熱保護裝置，S77、SF77、SA77、SAF77減速機機座號，HR手動釋放裝置，N代表徑向負荷，1/min代表輸出轉數。

S77減速機電機接線盒方位說明：本頁附件選型資料視圖為M1安裝，方向為:從電機尾部的風罩向前看。可提供R(0°)、B(90°）、L(180° )、T（270°)四種電機接線盒方位。可提供S和N兩種進線方位，其中R(0°)位置是默認方位，如無特別說明，將按默認方位提供。自鎖減速機

S77減速機結構圖：

S77減速機參數：

S77減速機電機可配三相/直流/變頻/剎車/防爆/伺服/交流/單相電機S77配0.55KW，S77配0.75KW，S77配1.1KW，S77配1.5KW，S77配2.2KW，S77配3KW，S77配4KW，S77配5.5KW，S77配7.5KW。

S77減速機減速比256.47比，225.26比，214比，189.09比，161.6比，148.15比，130比，123.3比，107.83比，97.14比，85.22比，75.2比，75.09比，71.33比，66.67比，63.03比，56.92比，53.87比，49.38比，43.33比，41.07比，35.94比，32.38比，28.41比，25.07比，22.89比，22.22比，20.99比，18.97比，18.42比，17.45比，15.28比，13.76比，12.07比，10.65比，9.44比，8.06比。

S77減速機輸出轉數5.50轉，6.2轉，6.5轉，7.4轉，8.7轉，9.4轉，11轉，13轉，14轉，16轉，19轉，20轉，21轉，22轉，25轉，26轉，28轉，32轉，34轉，39轉，43轉，49轉，56轉，61轉，63轉，67轉，74轉，76轉，80轉，92轉，102轉，116轉，131轉，148轉，174轉。（以上轉數均為四級電機算出的，可用2P/6P/8P計算，也可以用變頻電機調速，當需要特別低速輸出時，可選擇R系列減速機作為S系列減速機的輸入）

S77減速機輸出扭矩680N.m，705N.m，710N.m，720N.m，725N.m，930N.m，980N.m，990N.m，1020N.m，1040N.m，1050N.m，1070N.m，1090N.m，1100N.m，1140N.m，1170N.m，1200N.m，1210N.m，1240N.m，1260N.m，1270N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大，或者選擇跟R系列減速機組合使用）

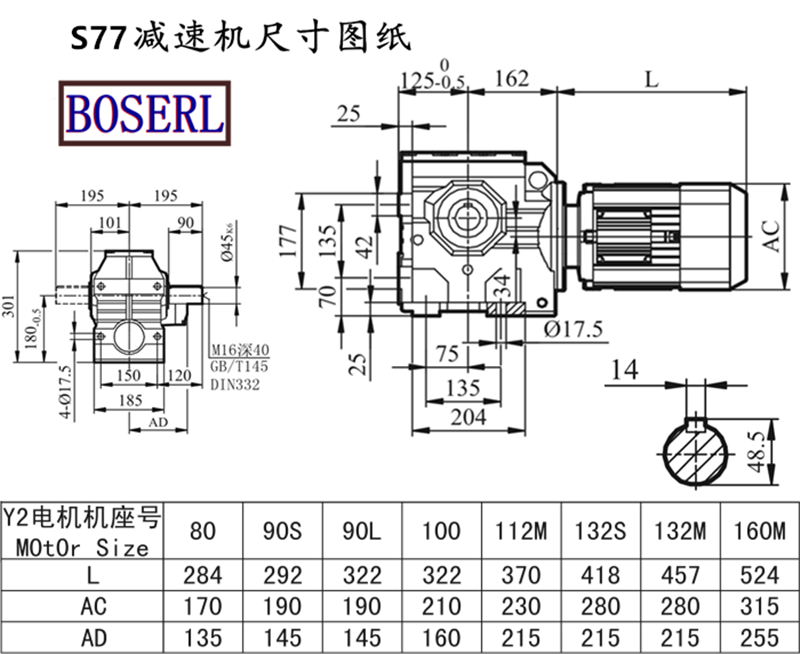

S77減速機尺寸圖紙：，高301*寬300（帶輸出軸）*長287

S77減速機型號：S77AQA80,S77AQA100,S77AQA115,S77AQA140,S77AQA160,S77AQA190,S77AQH80,S77AQH100,S77AQH115,S77AQH140,S77AQH160,S77AQH190,JRTS77-Y0.25KW,JRTS77-Y0.37KW,JRTS77-Y0.55KW,JRTS77-Y0.75KW,JRTS77-Y1.1KW,JRTS77-Y1.5KW,JRTS77-Y100M4,JRTS77-Y112M4,JRTS77-Y132M4,JRTS77-Y2.2KW,JRTS77-Y3KW,JRTS77-Y4KW,JRTS77-Y5.5KW,JRTS77-Y7.5KW,JRTS77-Y71M4,JRTS77-Y80M4,JRTS77-Y90M4,JRTS77-YEJ100M4,JRTS77-YEJ112M4,JRTS77-YEJ132M4,JRTS77-YEJ71M4,JRTS77-YEJ80M4,JRTS77-YEJ90M4,JRTS77-YS100M4,JRTS77-YS112M4,JRTS77-YS132M4,JRTS77-YS71M4,JRTS77-YS80M4,JRTS77-YS90M4,JRTS77-YVP100M4,JRTS77-YVP112M4,JRTS77-YVP132M4,JRTS77-YVP71M4,JRTS77-YVP80M4,JRTS77-YVP90M4,JRTS77-YVPEJ100M4,JRTS77-YVPEJ112M4,JRTS77-YVPEJ132M4,JRTS77-YVPEJ71M4,JRTS77-YVPEJ80M4,JRTS77-YVPEJ90M4,EWS77-Y0.25KW,EWS77-Y0.37KW,EWS77-Y0.55KW,EWS77-Y0.75KW,EWS77-Y1.1KW,EWS77-Y1.5KW,EWS77-Y100M4,EWS77-Y112M4,EWS77-Y132M4,EWS77-Y2.2KW,EWS77-Y3KW,EWS77-Y4KW,EWS77-Y5.5KW,EWS77-Y7.5KW,EWS77-Y71M4,EWS77-Y80M4,EWS77-Y90M4,EWS77-YEJ100M4,EWS77-YEJ112M4,EWS77-YEJ132M4,EWS77-YEJ71M4,EWS77-YEJ80M4,EWS77-YEJ90M4,EWS77-YS100M4,EWS77-YS112M4,EWS77-YS132M4,EWS77-YS71M4,EWS77-YS80M4,EWS77-YS90M4,EWS77-YVP100M4,EWS77-YVP112M4,EWS77-YVP132M4,EWS77-YVP71M4,EWS77-YVP80M4,EWS77-YVP90M4,EWS77-YVPEJ100M4,EWS77-YVPEJ112M4,EWS77-YVPEJ132M4,EWS77-YVPEJ71M4,EWS77-YVPEJ80M4,EWS77-YVPEJ90M4,SLS77-Y0.25KW,SLS77-Y0.37KW,SLS77-Y0.55KW,SLS77-Y0.75KW,SLS77-Y1.1KW,SLS77-Y1.5KW,SLS77-Y100M4,SLS77-Y112M4,SLS77-Y132M4,SLS77-Y2.2KW,SLS77-Y3KW,SLS77-Y4KW,SLS77-Y5.5KW,SLS77-Y7.5KW,SLS77-Y71M4,SLS77-Y80M4,SLS77-Y90M4,SLS77-YEJ100M4,SLS77-YEJ112M4,SLS77-YEJ132M4,SLS77-YEJ71M4,SLS77-YEJ80M4,SLS77-YEJ90M4,SLS77-YS100M4,SLS77-YS112M4,SLS77-YS132M4,SLS77-YS71M4,SLS77-YS80M4,SLS77-YS90M4,SLS77-YVP100M4,SLS77-YVP112M4,SLS77-YVP132M4,SLS77-YVP71M4,SLS77-YVP80M4,SLS77-YVP90M4,SLS77-YVPEJ100M4,SLS77-YVPEJ112M4,SLS77-YVPEJ132M4,SLS77-YVPEJ71M4,SLS77-YVPEJ80M4,SLS77-YVPEJ90M4,DSZS77-Y0.25KW,DSZS77-Y0.37KW,DSZS77-Y0.55KW,DSZS77-Y0.75KW,DSZS77-Y1.1KW,DSZS77-Y1.5KW,DSZS77-Y100M4,DSZS77-Y112M4,DSZS77-Y132M4,DSZS77-Y2.2KW,DSZS77-Y3KW,DSZS77-Y4KW,DSZS77-Y5.5KW,DSZS77-Y7.5KW,DSZS77-Y71M4,DSZS77-Y80M4,DSZS77-Y90M4,DSZS77-YEJ100M4,DSZS77-YEJ112M4,DSZS77-YEJ132M4,DSZS77-YEJ71M4,DSZS77-YEJ80M4,DSZS77-YEJ90M4,DSZS77-YS100M4,DSZS77-YS112M4,DSZS77-YS132M4,DSZS77-YS71M4,DSZS77-YS80M4,DSZS77-YS90M4,DSZS77-YVP100M4,DSZS77-YVP112M4,DSZS77-YVP132M4,DSZS77-YVP71M4,DSZS77-YVP80M4,DSZS77-YVP90M4,DSZS77-YVPEJ100M4,DSZS77-YVPEJ112M4,DSZS77-YVPEJ132M4,DSZS77-YVPEJ71M4,DSZS77-YVPEJ80M4,DSZS77-YVPEJ90M4,BS77-Y0.25KW,BS77-Y0.37KW,BS77-Y0.55KW,BS77-Y0.75KW,BS77-Y1.1KW,BS77-Y1.5KW,BS77-Y100M4,BS77-Y112M4,BS77-Y132M4,BS77-Y2.2KW,BS77-Y3KW,BS77-Y4KW,BS77-Y5.5KW,BS77-Y7.5KW,BS77-Y71M4,BS77-Y80M4,BS77-Y90M4,BS77-YEJ100M4,BS77-YEJ112M4,BS77-YEJ132M4,BS77-YEJ71M4,BS77-YEJ80M4,BS77-YEJ90M4,BS77-YS100M4,BS77-YS112M4,BS77-YS132M4,BS77-YS71M4,BS77-YS80M4,BS77-YS90M4,BS77-YVP100M4,BS77-YVP112M4,BS77-YVP132M4,BS77-YVP71M4,BS77-YVP80M4,BS77-YVP90M4,BS77-YVPEJ100M4,BS77-YVPEJ112M4,BS77-YVPEJ132M4,BS77-YVPEJ71M4,BS77-YVPEJ80M4,BS77-YVPEJ90M4,GS77-Y0.25KW,GS77-Y0.37KW,GS77-Y0.55KW,GS77-Y0.75KW,GS77-Y1.1KW,GS77-Y1.5KW,GS77-Y100M4,GS77-Y112M4,GS77-Y132M4,GS77-Y2.2KW,GS77-Y3KW,GS77-Y4KW,GS77-Y5.5KW,GS77-Y7.5KW,GS77-Y71M4,GS77-Y80M4,GS77-Y90M4,GS77-YEJ100M4,GS77-YEJ112M4,GS77-YEJ132M4,GS77-YEJ71M4,GS77-YEJ80M4,GS77-YEJ90M4,GS77-YS100M4,GS77-YS112M4,GS77-YS132M4,GS77-YS71M4,GS77-YS80M4,GS77-YS90M4,GS77-YVP100M4,GS77-YVP112M4,GS77-YVP132M4,GS77-YVP71M4,GS77-YVP80M4,GS77-YVP90M4,GS77-YVPEJ100M4,GS77-YVPEJ112M4,GS77-YVPEJ132M4,GS77-YVPEJ71M4,GS77-YVPEJ80M4,GS77-YVPEJ90M4,SC77-Y0.25KW,SC77-Y0.37KW,SC77-Y0.55KW,SC77-Y0.75KW,SC77-Y1.1KW,SC77-Y1.5KW,SC77-Y100M4,SC77-Y112M4,SC77-Y132M4,SC77-Y2.2KW,SC77-Y3KW,SC77-Y4KW,SC77-Y5.5KW,SC77-Y7.5KW,SC77-Y71M4,SC77-Y80M4,SC77-Y90M4,SC77-YEJ100M4,SC77-YEJ112M4,SC77-YEJ132M4,SC77-YEJ71M4,SC77-YEJ80M4,SC77-YEJ90M4,SC77-YS100M4,SC77-YS112M4,SC77-YS132M4,SC77-YS71M4,SC77-YS80M4,SC77-YS90M4,SC77-YVP100M4,SC77-YVP112M4,SC77-YVP132M4,SC77-YVP71M4,SC77-YVP80M4,SC77-YVP90M4,SC77-YVPEJ100M4,SC77-YVPEJ112M4,SC77-YVPEJ132M4,SC77-YVPEJ71M4,SC77-YVPEJ80M4,SC77-YVPEJ90M4,MTN77-Y0.25KW,MTN77-Y0.37KW,MTN77-Y0.55KW,MTN77-Y0.75KW,MTN77-Y1.1KW,MTN77-Y1.5KW,MTN77-Y100M4,MTN77-Y112M4,MTN77-Y132M4,MTN77-Y2.2KW,MTN77-Y3KW,MTN77-Y4KW,MTN77-Y5.5KW,MTN77-Y7.5KW,MTN77-Y71M4,MTN77-Y80M4,MTN77-Y90M4,MTN77-YEJ100M4,MTN77-YEJ112M4,MTN77-YEJ132M4,MTN77-YEJ71M4,MTN77-YEJ80M4,MTN77-YEJ90M4,MTN77-YS100M4,MTN77-YS112M4,MTN77-YS132M4,MTN77-YS71M4,MTN77-YS80M4,MTN77-YS90M4,MTN77-YVP100M4,MTN77-YVP112M4,MTN77-YVP132M4,MTN77-YVP71M4,MTN77-YVP80M4,MTN77-YVP90M4,MTN77-YVPEJ100M4,MTN77-YVPEJ112M4,MTN77-YVPEJ132M4,MTN77-YVPEJ71M4,MTN77-YVPEJ80M4,MTN77-YVPEJ90M4,WXS77-WSS0.25KW,WXS77-WSS0.37KW,WXS77-WSS0.55KW,WXS77-WSS0.75KW,WXS77-WSS1.1KW,WXS77-WSS1.5KW,WXS77-WSS100M4,WXS77-WSS112M4,WXS77-WSS132M4,WXS77-WSS2.2KW,WXS77-WSS3KW,WXS77-WSS4KW,WXS77-WSS5.5KW,WXS77-WSS7.5KW,WXS77-WSS71M4,WXS77-WSS80M4,WXS77-WSS90M4,WXS77-WSSB100M4,WXS77-WSSB112M4,WXS77-WSSB132M4,WXS77-WSSB71M4,WXS77-WSSB80M4,WXS77-WSSB90M4,WXS77-WSSVP100M4,WXS77-WSSVP112M4,WXS77-WSSVP132M4,WXS77-WSSVP71M4,WXS77-WSSVP80M4,WXS77-WSSVP90M4,WXS77-WSSVPB100M4,WXS77-WSSVPB112M4,WXS77-WSSVPB132M4,WXS77-WSSVPB71M4,WXS77-WSSVPB80M4,WXS77-WSSVPB90M4,EWS77-WSS0.25KW,EWS77-WSS0.37KW,EWS77-WSS0.55KW,EWS77-WSS0.75KW,EWS77-WSS1.1KW。

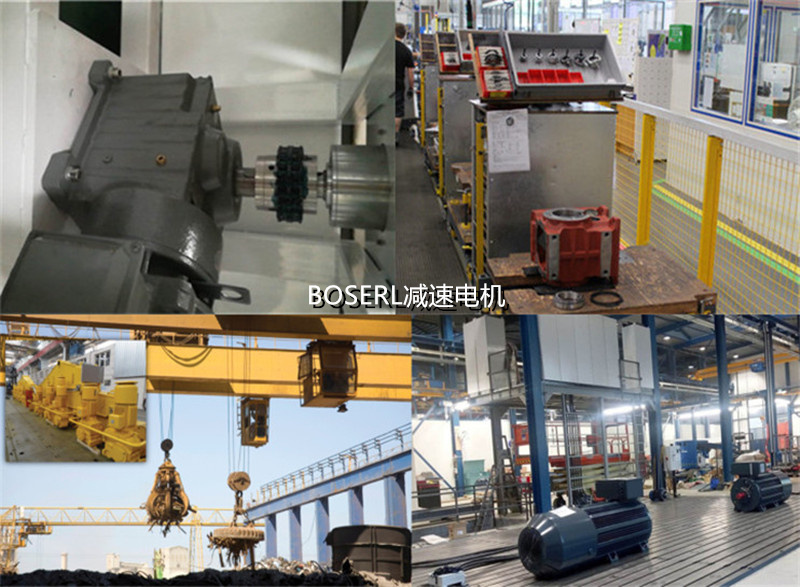

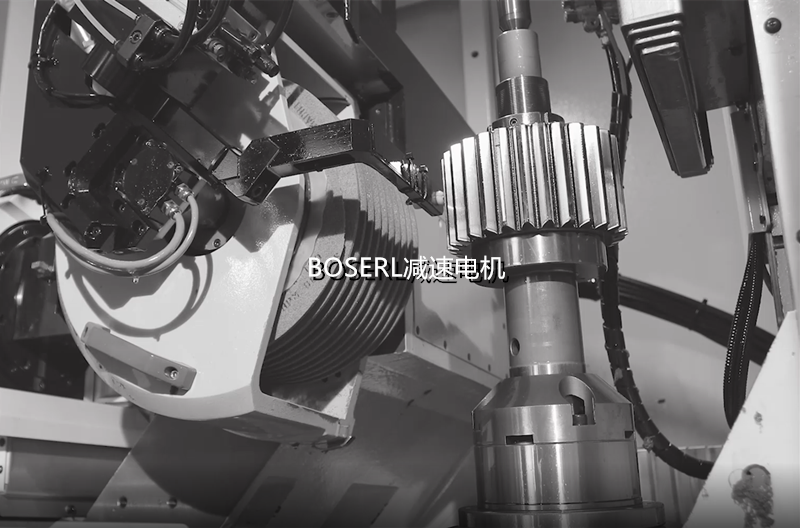

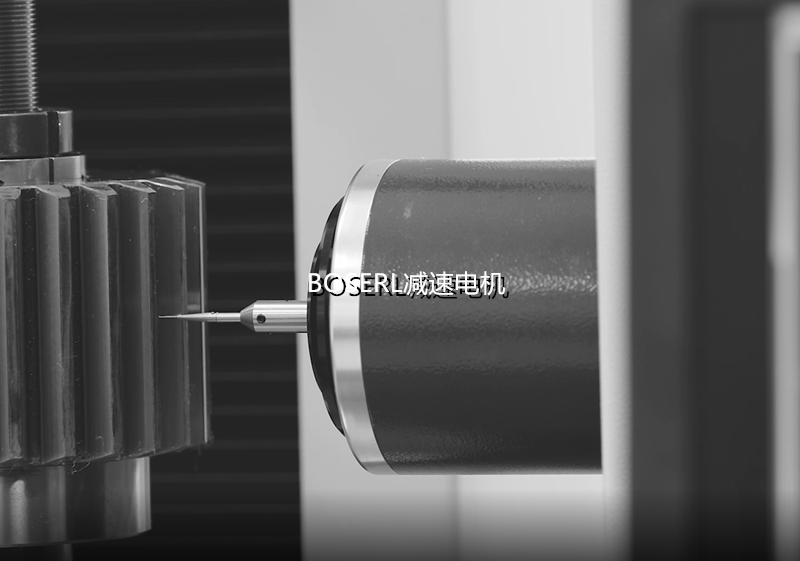

S77減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.wxwsd.com.cn/product/list-sxiliejiansuji-cn.html
